CASE STUDY 2 - VIBRATING ELECTROMAGNETIC FEEDERS FOR FINE POWDERED CALCIUM POLYMER CARBON

A leading manufacturer of a fine powdered calcium / polymer carbon required a controlled feed to a fine grind pulverizer while removing any foreign items in the product flow.

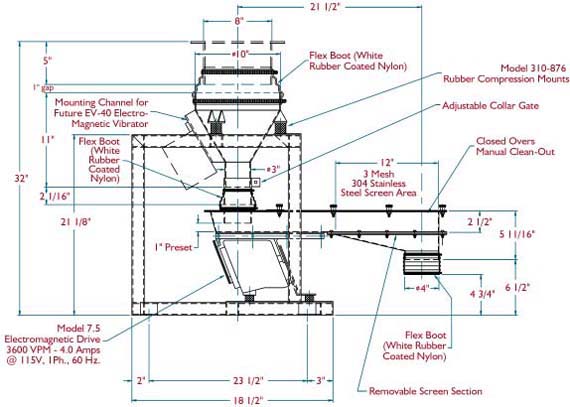

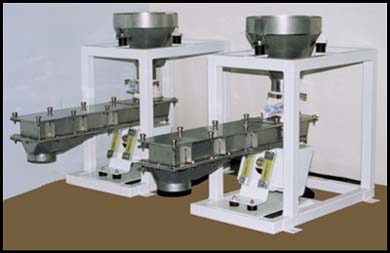

Manufacturer supplied two Model No. HF-E-SF-424-7.5-(1-1/2) Hopper Type Screener Feeder machines with scalping screen deck, having a 3 mesh 304 Stainless 4" x 12" wire cloth screen deck. All product passes through the screen. Foreign products, paper, string, etc., are retained and are removed periodically via the top quick removal cover. All dust boots and seals are white food grade. Feeder tray and the 1-1/2 cu. ft. conical hopper are manufactured from 304 Stainless Steel.
